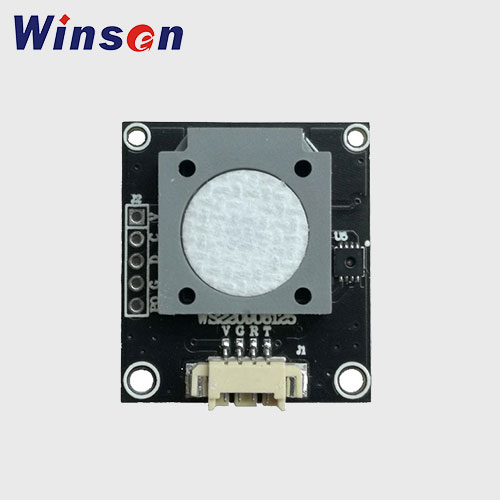

Electrochemical HCHO Formaldehyde Sensor Module ZES10-CH2O
ZES10-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature and humidity sensor to make Temperature and Humidity compensation. It is a combination of mature electrochemical detection principle and sophisticated circuit design, with digital output and is easy to use.
Portable detector, air-quality monitor, air cleaner, air renewal system, air conditioner, smart home.
- High sensitivity &resolution, Good stability
- Low power consumption, Excellent Linear output
- Excellent ability of Anti-interference,Long life span
- Temperature & Humidity compensation
|Interference Gas||Alcohol, CO &ect.|
|Warm up time||≤3min|
|Operating Hum.||15%RH-90％RH(No condensation)|
|Working life||5 years (in clean air 18℃~ 25℃)|
* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
Customized technical design and function, LOGO and package are available without extra charge (including molding fee) for mass volume.
The sensors don't have sleeping mode. It can be set in program if needed.
All Winsen products go through strict inspections and tests to make sure they are 100% qualified before shipping out.
The sensor has been fully tested (not calibrated) before leaving the factory. However, after transportation and storage, the environment conditions change, and the surface of the sensor absorbs moisture, mixed gas, pollution matters, etc. It is recommended that customers perform aging and calibration after sensors become stable according to the program and use occasions of the whole device.
15﹪-90﹪RH without condensation,greater or less than this range or long-term high temperature and high humidity will affect the life of the sensor.
Our sensors are certified with CE, 3C, ROHS, anti-explosion, fire prevention, and coal mining safety according to different applications. And we provide assistance for new certification.
Many factors can cause the sensor to fail such as broken wires in transportation, poisoning, falling off of the sensitive material, damage to the heating wire (device), etc. Please find specific cause in each category with Winsen’s aftersales.
