ME4-CO Electrochemical Carbon Monoxide sensor

  • • Detection Gas: CO, carbon monoxide
  • • Detection Range: 0~1000ppm
  • • Application: industrial and environmental protectionl fields

We're here to help: Easy ways to get the answers you need.

  • Principle Introduction
Principle Introduction:
Winsen Electronics, as a professional gas sensor manufacturer, produce carbon monoxide sensor, industrial CO sensor, using fuel cell / electrochemical working principle.
ME4-CO carbon monoxide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with carbon monoxide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of carbon monoxide. So the concentration of the target gas could be got by measuring the value of current.
Applications :
It is used for carbon monoxide detection in industrial occasions such as petroleum and petrochemical occasions, metallurgy, mine and environmental protection.
Technical parameters :

Tips:For more parameter information, please refer to the latest manual provided by salesman.

Detection Gas Carbon monoxide(CO)
Detection Range 0~1000ppm
Max Range 1500ppm
Sensitivity (0.080±0.02)µA/ppm
Resolution 1ppm
Response Time(T90) ≤25S
Bias voltage 0mV
Load Resistance (Recommended) 10Ω
Repeatability <2﹪ Output
Output Linearity linear
Stability(/month) <5﹪
Zero drift (-20℃~40℃) 9ppm
Temperature range -20℃~50℃
Humidity range 15﹪~90﹪RH
Pressure range Standard atmospheric pressure ±10﹪
Lifespan 2years(in air)

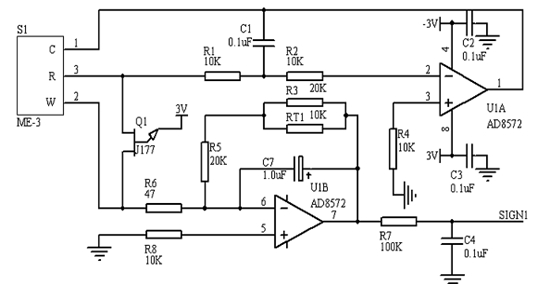

Reference Circuit :
