WPCK08 Level Transmitter
WPCK08 Level Transmitter
WPAS12 Plastic Package Pressure Sensor
WPAS12 Plastic Package Pressure Sensor
WPCH04 General Type Ceramic Pressure Transmitter
WPCH04 General Type Ceramic Pressure Transmitter
  • 0.2~40MPa
  • ≤1ms
  • Read More
WPCH01 General Type Ceramic Pressure Transmitter
WPCH01 General Type Ceramic Pressure Transmitter
  • 0.2 ~5MPa
  • ≤1ms
  • Read More
WPAS01 Plastic Package Pressure Sensor
WPAS01 Plastic Package Pressure Sensor
  • 10kPa~100kPa
  • Read More
WPAS02 Plastic Package Pressure Sensor
WPAS02 Plastic Package Pressure Sensor
  • 10kPa~100kPa
  • Read More
WPCK81 Liquid Level Transmitter
WPCK81 Liquid Level Transmitter
  • 0~1m…5m…200mH₂O
  • ≤1ms
  • Read More
WPCK05 Diffused Silicon Pressure Transmitter
WPCK05 Diffused Silicon Pressure Transmitter
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More
WPAK70 General Type Isolation-Film Pressure Sensor
WPAK70 General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…10MPa
  • ≤1ms
  • Read More
WPBH01 Ceramic pressure sensor module
WPBH01 Ceramic pressure sensor module
  • 2bar—400bar
  • <1mS
  • Read More
WPAH01 Ceramic Pressure Sensor
WPAH01 Ceramic Pressure Sensor
  • 2bar、5bar、10bar、20bar、50bar、100bar
  • Read More
WPCK62 Diffussed Silicon Pressure Transmitter
WPCK62 Diffussed Silicon Pressure Transmitter
  • 0~35kPa…25MPa
  • <4ms
  • Read More

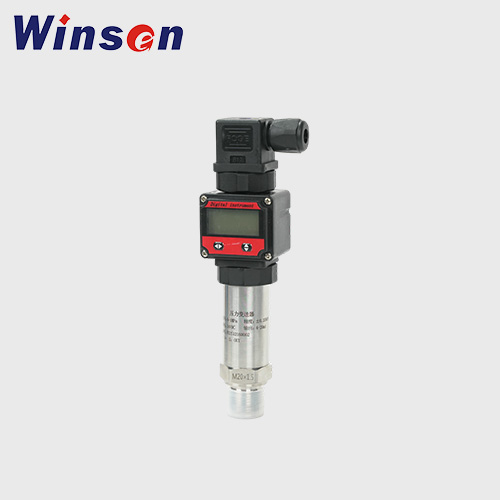

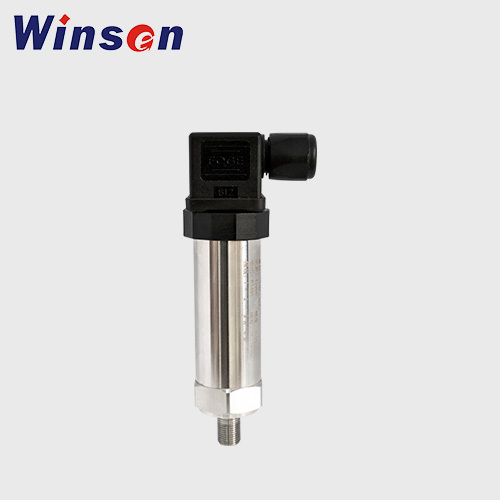

WPCK07 Diffussed Silicon Pressure Transmitter
WPCK07 Diffussed Silicon Pressure Transmitter
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More
WPCK03 Diffussed Silicon Pressure Transmitter
WPCK03 Diffussed Silicon Pressure Transmitter
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More
WPAK69 General Type Isolation-Film Pressure Sensor
WPAK69 General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…10MPa
  • ≤1ms
  • Read More
WPAK68 General Type Isolation-Film Pressure Sensor
WPAK68 General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More
WPAK67 General Type Isolation-Film Pressure Sensor
WPAK67 General Type Isolation-Film Pressure Sensor
  • 0~10kPa…2.5MPa
  • ≤1ms
  • Read More
WPAK66 General Type Isolation-Film Pressure Sensor
WPAK66 General Type Isolation-Film Pressure Sensor
  • 6MPa…60MPa
  • ≤1ms
  • Read More
WPAK65 General Type Isolation-Film Pressure Sensor
WPAK65 General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…16MPa
  • ≤1ms
  • Read More
WPAK64 Mini-Size Diffused Silicon Pressure Sensor
WPAK64 Mini-Size Diffused Silicon Pressure Sensor
  • -100kPa~0~10kPa…25MPa
  • ≤1ms
  • Read More
WPAK63J General Type Isolation-Film Pressure Sensor
WPAK63J General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More
WPAK63 General Type Isolation-Film Pressure Sensor
WPAK63 General Type Isolation-Film Pressure Sensor
  • -100kPa~0~10kPa…100MPa
  • ≤1ms
  • Read More

Free Guide!

Get Winsen Pressure Sensor & Transmitter Catalogue!

Help you compare our sensors

Table Overview for Winsen Pressure sensor

Unsure which sensor to choose, please leave your information or email us sales@winsensor.com

Modle Pressure Range Pressure Reference Response Time Working Temperature Diaphragm material

WPCK08

WPCK89

WPAS12

WPCH04
0.2~40MPa ≤1ms -20-125°C

WPCH01
0.2 ~5MPa ≤1ms -20~125°C

WPAS01
10kPa~100kPa -40~125℃

WPAS02
10kPa~100kPa -40~125℃

WPCK81
0~1m…5m…200mH₂O ≤1ms -20℃~85℃ SS 316L

WPCK05
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -30℃-105℃ SS 316L

WPAK70
-100kPa~0~10kPa…10MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPBH01
2bar—400bar <1mS -20~125℃ Ceramic

WPAH01
2bar、5bar、10bar、20bar、50bar、100bar -40℃-125℃ Ceramic

WPCK62
0~35kPa…25MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure <4ms -30℃-100℃ SS 316L

WPCK07
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -30℃-105℃ SS 316L

WPCK03
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40~80℃ SS 316L

WPAK69
-100kPa~0~10kPa…10MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK68
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK67
0~10kPa…2.5MPa Differential Pressure ≤1ms -40℃~120℃ SS 316L

WPAK66
6MPa…60MPa Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK65
-100kPa~0~10kPa…16MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK64
-100kPa~0~10kPa…25MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK63J
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

WPAK63
-100kPa~0~10kPa…100MPa Gauge Pressure/Absolute Pressure/Sealed Gauge Pressure ≤1ms -40℃~120℃ SS 316L

ARE YOU LOOKING FOR SENSOR

Not sure which sensor is right?

Get a free initial consultation right now

WHAT WE DO

Pressure sensor Knowledge

Pressure sensor is a sensitive element that converts pressure signal into an electrical signal output. Winsen provides pressure sensors and transmitters include types of diffused silicon piezoresistive, isolation-film, ceramic piezoresistive and capacitive, widely used for gas and liquid pressure measurement in industrial field, IoT system, water treatment, oil tank, fire prevention, automation process, HVAC, air compressor, etc.
