| Model: | WPAK64 |
| Detection principle: | Diffused Silicon |
| Characteristics: | Mini-size pressure sensor core, 316L stainless steel package, wide temperature compensation, optional excitation methods and moisture-proof circuit board. |
| Output signal: | Millivolt bridge output |
| Measurement range: | 0～10kPa, 0～20kPa, 0～35kPa, 0～70kPa, 0～100kPa, 0～160kPa, 0～250kPa, 0～500kPa, 0～1MPa, 0～1.6MPa, 0～2.5MPa, 0～4MPa, 0～6MPa, 0～10MPa, 0～16MPa, 0～25MPa |
| Response time: | ≤1ms |
| Pressure Range: | -100kPa～25MPa |
| Pressure Reference: | Gauge Pressure / Absolute Pressure / Sealed Gauge Pressure |
| Working Temperature: | -40℃～120℃ |
| Diaphragm material: | 316L |
Get Price Whatsapp
Description

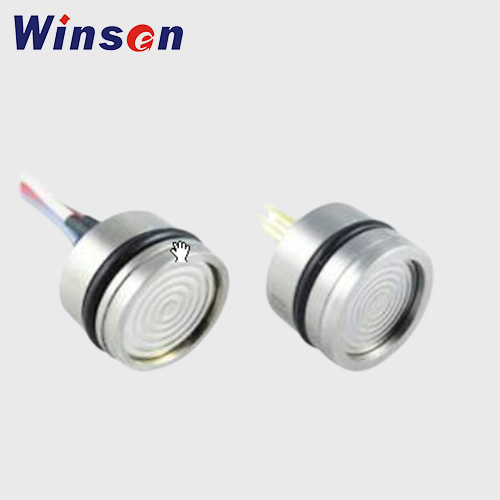

The WPAK64 series is a compact pressure sensor core manufactured using a high-precision imported diffused silicon pressure-sensitive chip and mature packaging technology. It is designed as a core component for pressure sensors and pressure transmitters.
The sensor millivolt signal can be amplified and integrated into a transmitter with a standard output. Customized welded structures, temperature compensation, external dimensions and enhanced resistance to shock and vibration are available.
Application
- Process control systems
- Pressure calibration instruments
- Biomedical instruments
- Hydraulic systems
- Hydraulic valves
- Liquid-level measurement
- Refrigeration equipment
- HVAC systems
- Ships
- Navigation systems
Features
- Mini-size pressure sensor core
- All-stainless-steel 316L package
- Good corrosion resistance
- Wide temperature compensation
- Optional constant-current excitation
- Optional constant-voltage excitation
- Normalized output available
- Glue-filled circuit board
- Moisture-proof circuit board
- Fast response
- High shock resistance
- High vibration resistance
- Multiple pressure reference options
- Customizable full-welded structure
- Customizable sensor shape
Specifications
| Detection Range | -100kPa～0～10kPa…25MPa |
| Pressure Reference | Gauge Pressure / Absolute Pressure / Sealed Gauge Pressure |
| Power Supply | 10V |
| Input Resistance | Constant Current: 2kΩ～5kΩ |
| Electrical Connection | Pin or Wiring |
| Compensation Temperature | -20℃～85℃ |
| Working Temperature | -40℃～120℃ |
| Storage Temperature | -40℃～125℃ |
| Insulation Resistance | ≥200MΩ/250VDC |
| Response Time | ≤1ms, Up to 90%FS |
| Measuring Medium | Liquid and Gas |
| Mechanical Vibration | 20g（20～5000Hz） |
| Shock Resistance | 100g（10ms） |
| Lifespan | 10×106 pressure cycles |
| Diaphragm Material | 316L |
| Housing Material | 316L |
| Infused Liquid | Silicone Oil |
| Seal Ring Material | Nitrile / Fluororubber |
| Non-linearity | Min: -0.3%FS; Special: ±0.25%FS; Max: 0.3%FS |
| Hysteresis | Min: -0.05%FS; Special: ±0.03%FS; Max: 0.05%FS |
| Repeatability | Min: -0.05%FS; Special: ±0.03%FS; Max: 0.05%FS |
| Zero Point Output | Min: -2mV; Special: ±1mV; Max: 2mV |
| Full-range Output | 1.5mA, 10kPa: Min 20mV; 1.5mA, other ranges: 50～150mV, Special 90mV; 10V, 10kPa: Min 30mV; 10V, other ranges: 60～110mV, Special 100mV |
| Zero Point Temperature Drift | 10kPa: Special ±1.5%FS; Other ranges: Special ±0.75%FS |
| Sensitivity Drift | Special: ±0.75%FS |
| Heat Hysteresis | Special: ±0.05%FS |
| Long-term Stability | Special: ±0.2%FS/Year |
* The description and specifications might be changed without notice. Please contact us for the latest information before placing orders.
Technical Support:
Customized technical design and function, LOGO and package are available without extra charge (including molding fee) for mass volume.
The sensors don't have sleeping mode. It can be set in program if needed.
All Winsen products go through strict inspections and tests to make sure they are 100% qualified before shipping out.
The sensor has been fully tested (not calibrated) before leaving the factory, but the module will be calibrated before leaving the factory.
However, after transportation and storage, the environment conditions change, and the surface of the sensor absorbs moisture, mixed gas, pollution matters, etc. It is recommended that customers perform aging and calibration after sensors become stable according to the program and use occasions of the whole device.
15﹪-90﹪RH without condensation,greater or less than this range or long-term high temperature and high humidity will affect the life of the sensor.
Our sensors are certified with CE, 3C, ROHS, anti-explosion, fire prevention, and coal mining safety according to different applications. And we provide assistance for new certification.
Many factors can cause the sensor to fail such as broken wires in transportation, poisoning, falling off of the sensitive material, damage to the heating wire (device), etc. Please find specific cause in each category with Winsen’s aftersales.
