What is smart public toilet?

Smart public toilet refers to the application of IoT technology, sensors, and intelligent control systems to optimize restroom management, improve user experience, and reduce operational costs. By real-time monitoring of environmental parameters (odor, temperature, humidity), equipment status, and user flow, it realizes functions such as automatic ventilation, intelligent cleaning scheduling, and energy-saving control.

It solves the pain points of traditional public toilets such as severe odors, untimely cleaning, and resource waste, and is widely used in transportation hubs, commercial complexes, scenic spots, office buildings, and other public places.

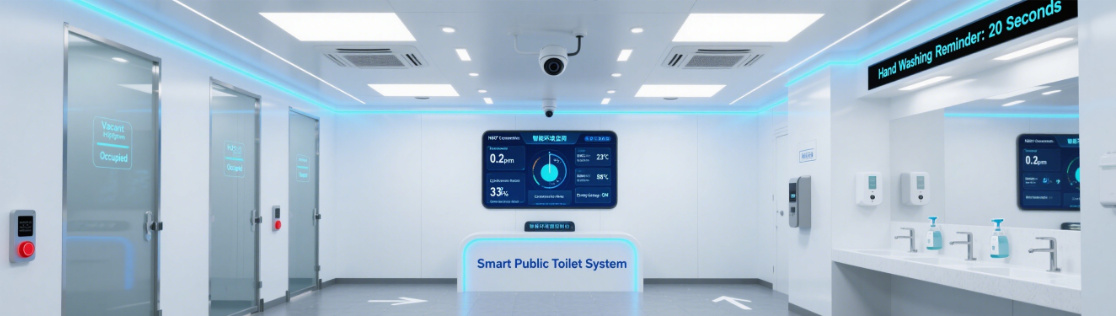

Smart public toilet system

Challenges solved by smart toilet solutions

Persistent Odor Problems

Ammonia (NH3) and hydrogen sulfide (H2S) from human waste cause unpleasant smells, affecting user experience.

Inefficient Cleaning

Fixed cleaning schedules lead to either unnecessary work or delayed response to pollution.

Resource Waste

Continuous operation of ventilation and lighting systems regardless of actual usage status.

Lack of Real-time Monitoring

Inability to grasp the usage status and environmental quality of toilets in real time.

How sensors enable smart toilet management

Sensors are the core of smart toilet systems, responsible for collecting key environmental and operational data. By monitoring odor gases, temperature, humidity, and occupancy status, they provide a data basis for intelligent decision-making, enabling automated control and refined management.

Odor Monitoring (Core Function)

The most critical demand for smart toilets is odor control. Ammonia (NH3) and hydrogen sulfide (H2S) are the main sources of toilet odors. Real-time detection of their concentrations can trigger ventilation systems and cleaning alerts in a timely manner.

Ammonia (NH3) Sensor - ZE03-NH3

Ammonia is a pungent gas produced in toilet environments, with high concentration causing discomfort and irritation. ZE03-NH3 sensor provides high-precision detection to ensure timely odor control.

Model: ZE03-NH3
Detection Range: 0-100ppm
Resolution: 1 ppm
Response Time: ≤150 seconds

Read More

Hydrogen Sulfide (H2S) Sensor - ZE03-H2S

Hydrogen sulfide is a highly toxic gas with a rotten egg smell, which is extremely harmful to human health even at low concentrations. ZE03-H2S sensor ensures safe monitoring in toilet environments.

Model: ZE03-H2S
Detection Range: 0-100ppm
Resolution: 1 ppm
Response Time: ≤30 seconds
Lifespan: 2 years (typical)

Read More

Environmental Parameter Monitoring

In addition to odor gases, temperature, humidity, and air flow are also important indicators affecting toilet comfort. Comprehensive environmental monitoring helps optimize ventilation and heating/cooling systems.

Temperature and Humidity Sensors

Suitable temperature and humidity levels can reduce bacterial growth and odor generation. Real-time monitoring helps adjust ventilation and heating systems.

Model: WHT20
Temperature Range: -40℃~85℃ (±0.3℃ accuracy)
Humidity Range: 0~100%RH (±2%RH accuracy)
Output: I2C
Size: 12.2×8.7×3.5mm

Read More

Intelligent Control & Management

Based on sensor data, intelligent control systems realize automated operation of toilet equipment, improving management efficiency and reducing manual intervention.

Occupancy Detection (PIR Sensors)

Detecting whether a toilet cubicle is occupied can realize functions such as automatic lighting, door locks, and usage statistics, avoiding energy waste and improving user experience.

Model: ZRD-09
Detection Range: 3-5 meters
Detection Angle: 110°
Output: Digital (high/low level)
Operating Voltage: 3.3V/5V

Read More

Water Quality & Usage Monitoring

Monitoring water quality and flow in toilet facilities can prevent pipeline blockages, detect leaks in time, and realize water-saving management.

Application Scenarios

Shopping Malls & Commercial Complexes

High foot traffic areas requiring constant odor control and clean environment

Airports & Transportation Hubs

24-hour operation scenarios with high hygiene requirements

Scenic Spots & Parks

Outdoor public toilets with harsh environment and difficult management

Office Buildings

Improve employee satisfaction with comfortable restroom environment

Schools & Hospitals

Places with high requirements for hygiene and health safety
