Develop smarter indoor air quality monitors with Winsen CO2, PM2.5, VOC, formaldehyde, temperature and humidity sensors. Choose compact multi-in-one modules or dedicated sensor combinations for environmental monitoring devices, smart buildings and connected IAQ products.
CO₂, particles, VOC, HCHO and environmental conditions for IAQ monitoring.
Choose dedicated sensors or integrated sensing modules for different device designs.
Integrate sensor outputs into compatible controllers and monitoring electronics.
Evaluate size, interfaces, power and environmental requirements with Winsen.

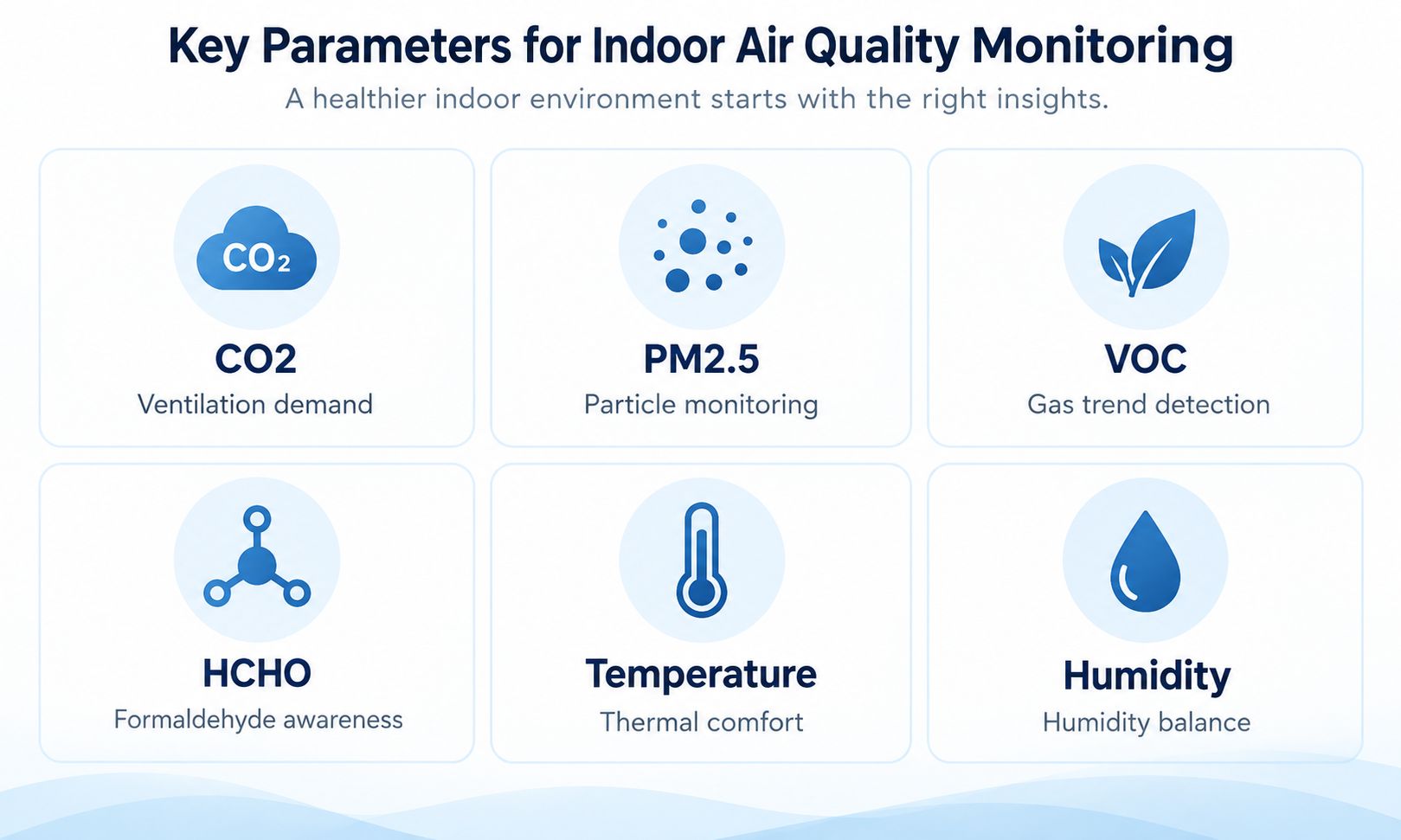

An indoor air quality monitor may measure several parameters, but each sensor has a distinct measurement target. Selecting the right combination is the first step in developing a useful, reliable IAQ monitoring product.
CO₂ monitoring provides information relevant to indoor ventilation and occupied-space environmental assessment.
MH-Z1911A / ZPHS01C / ZPHS01BPM1.0, PM2.5 and PM10 measurements provide information about airborne particle levels in indoor environments.
ZH10-F / ZPHS01B / ZPHS01CVOC sensing helps monitor changes in selected volatile organic compounds and gaseous air pollution trends.
ZM106-VOC / ZPHS01B / ZPHS01C VOC VersionDedicated HCHO sensing supports formaldehyde concentration measurement in IAQ monitors with this specific function.
ZE08K-CH2O / ZPHS01C HCHO VersionIndoor temperature measurements support environmental monitoring, comfort-related information and device-level data display.
ZS13A / Integrated IAQ ModulesRelative humidity monitoring adds useful environmental context and supports indoor comfort condition assessment.
ZS13A / Integrated IAQ Modules
From a simple CO₂ monitor to an advanced multi-gas environmental monitoring device, different product levels require different sensing combinations.
A compact indoor environmental monitor focused on carbon dioxide, temperature and humidity.
Add particulate matter measurements to a CO₂ monitoring device for broader indoor air quality data.
Combine several common IAQ measurements within an integrated module.
Extend monitoring to additional gas parameters such as CO, O₃ and NO₂ where required.
IAQ monitoring device manufacturers can combine separate sensing modules or select an integrated multi-parameter sensor platform. Each approach offers different integration advantages.
Choose individual modules for CO₂, PM, VOC, HCHO and temperature/humidity measurements.
Example:
MH-Z1911A + ZH10-F + ZM106-VOC + ZS13A
Use an integrated module to combine several environmental measurements within one assembly.
Example:
ZPHS01C / ZPHS01B

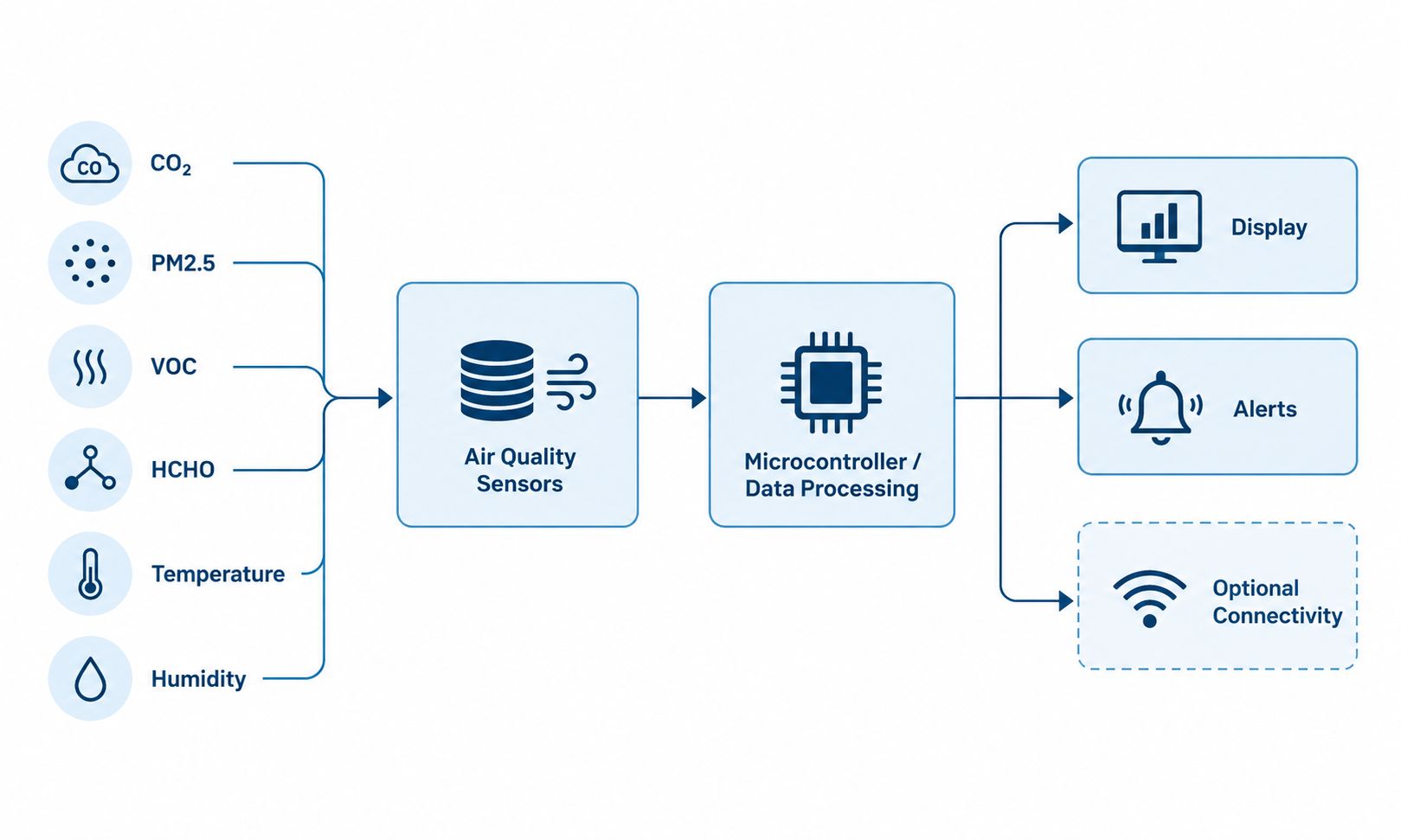

Sensors are only one part of a complete air quality monitoring system. The host device manages data acquisition, processing, display, alarms, storage and optional communication.
Measure CO₂, PM, VOC, HCHO, temperature or humidity using the selected sensing modules.
The monitor's MCU acquires sensor outputs and handles data validation, timing and processing.
The finished device may present measurements, trends, indicators and configured alerts.
The OEM may implement wireless communication, local storage or external data integration.
For manufacturers developing multi-parameter environmental monitoring products, Winsen offers integrated sensor modules with several sensing technologies.
Integrated air quality module combining particle, NDIR CO₂, temperature and humidity measurements with a selectable HCHO or VOC configuration.
Multi-parameter environmental sensing module integrating particle, CO₂, HCHO, O₃, CO, TVOC, NO₂ and temperature/humidity functions.
Individual sensing modules allow equipment manufacturers to select measurement functions independently and develop customized IAQ monitors for different product requirements.
Compact infrared CO₂ sensor for indoor air quality meters, environmental monitors and smart devices.
Compact particle sensor module for PM1.0, PM2.5 and PM10 monitoring in environmental devices.
Dedicated electrochemical formaldehyde module for monitors requiring HCHO concentration measurements.
MEMS semiconductor VOC module for gaseous pollution trend monitoring in indoor environmental devices.
Calibrated digital temperature and humidity sensor for room monitors and indoor environmental devices.
In addition to embedded sensor modules, Winsen offers WS-M1300 as a complete indoor environmental monitoring device.
WS-M1300 is an indoor air quality monitoring product with standard temperature, humidity, PM and CO₂ sensing. TVOC, formaldehyde and CO sensing can be included according to the selected product configuration.
The device supports BLE communication and local measurement history storage. It can be considered for indoor environmental monitoring projects requiring a finished hardware product.
Compare sensor combinations according to the monitoring functions and hardware architecture of your IAQ device.
| Monitor Type | Core Measurements | Recommended Winsen Products | Architecture | Selection Consideration |
|---|---|---|---|---|
| Basic CO₂ Monitor | CO₂ | MH-Z1911A | Dedicated Sensor | Suitable for CO₂-focused indoor monitoring equipment. |
| CO₂ & Comfort Monitor | CO₂, Temperature, Humidity | MH-Z1911A + ZS13A | Dedicated Sensors | Combines ventilation-related and comfort-related parameters. |
| CO₂ & Particle Monitor | CO₂, PM1.0, PM2.5, PM10 | MH-Z1911A + ZH10-F | Dedicated Sensors | Evaluate airflow and sampling conditions for particle sensing. |
| VOC & HCHO Monitor | VOC, Formaldehyde | ZM106-VOC + ZE08K-CH2O | Dedicated Sensors | Dedicated HCHO measurement complements broad VOC sensing. |
| Integrated IAQ Monitor | PM2.5, CO₂, T&H, HCHO or VOC | ZPHS01C | Multi-in-One | Confirm the selected HCHO or VOC configuration. |
| Advanced Multi-Gas Monitor | CO₂, PM, HCHO, TVOC, CO, O₃, NO₂, T&H | ZPHS01B | Multi-in-One | Compare size, target ranges, output units and sensor maintenance requirements. |
| Complete IAQ Monitoring Device | PM, CO₂, T&H with configuration-dependent optional parameters | WS-M1300 | Finished Product | Suitable when a completed BLE-enabled monitoring device is preferred over embedded modules. |
Developing a reliable IAQ monitor requires more than choosing multiple sensor modules. Mechanical layout, environmental sampling, communication, power and software processing affect the finished device.
Provide suitable exposure of each sensing element to representative room air. Validate the effect of vents and enclosure geometry.
CO₂, PM, VOC and electrochemical modules may have different startup and response characteristics. Account for these in software.
Evaluate environmental limits, condensation, heat generated by electronics and measurement compensation.
VOC and electrochemical sensors can respond to interfering gases. Refer to the model's technical documentation.
Plan calibration, aging, contamination control and sensor replacement or service according to the model.
Define measurement handling, display rules, alert conditions and optional data logging according to the finished product design.
Winsen sensor modules can be integrated into a wide range of monitoring devices depending on the product's measurement objectives and design requirements.
Compact environmental monitoring devices for indoor air quality measurements and information display.
Multi-parameter sensing options for fixed indoor monitoring terminals and smart building devices.
Environmental sensor combinations for connected home monitoring equipment.
CO₂, particulate matter, temperature and humidity sensing for indoor workplace monitoring.
Environmental measurements relevant to classroom ventilation awareness and air quality monitoring.
Customized multi-sensor monitoring devices for different indoor environmental parameters.
Winsen also provides sensors for air purification, HVAC control, fresh-air equipment and broader environmental monitoring.
Common questions about monitoring parameters, module selection, sensor integration and IAQ device development.
Common sensor types include CO₂, particulate matter, VOC, formaldehyde, temperature and humidity sensors. The appropriate combination depends on the monitoring functions of the finished device.
CO₂ sensors measure carbon dioxide concentration. PM2.5 sensors measure airborne fine particles, while VOC sensors respond to selected volatile organic compounds or gaseous pollution changes.
A general VOC sensor should not be treated as an equivalent substitute for dedicated formaldehyde concentration measurement. Use an HCHO-specific sensor when that parameter is required.
Dedicated sensors provide flexible parameter selection and placement, while multi-in-one modules can simplify mechanical design and module integration. The right choice depends on measurement and hardware requirements.
No. The standard Winsen ZPHS01C module is offered in an HCHO version or a VOC version. These are alternative configurations.
ZPHS01B includes CO₂, particulate matter, formaldehyde, ozone, carbon monoxide, TVOC, nitrogen dioxide, temperature and humidity sensing functions. Refer to the official specifications for each measurement range and output unit.
Individual embedded sensor modules provide model-specific measurement outputs. Display, wireless communication, alarms and data storage are generally implemented by the finished device. Winsen WS-M1300 is a separate finished monitoring product with BLE functionality.
Important factors include representative air sampling, enclosure ventilation, power consumption, internal heat, sensor response characteristics, contamination, calibration and environmental limits.
Winsen supports sensor selection, model-specific interface discussions and application-level technical communication for IAQ monitor equipment manufacturers.
Tell us the parameters your IAQ monitor needs to measure, your required dimensions, communication interfaces and target application. Winsen can help you evaluate suitable dedicated sensors, multi-in-one modules and monitoring solutions for your OEM project.
